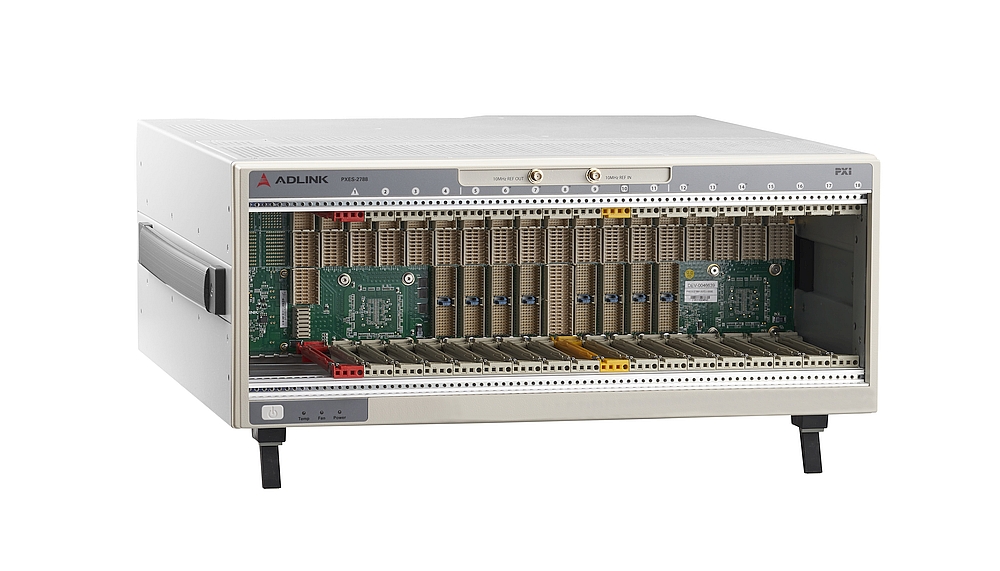

- Adlink’s PXES-2788 range of PXI Express chassis offers 18 or 21 slots for PXI format boards.
- These chassis feature a removable power supply delivering up to 2400 W.
# Main features of PXES-2788 series chassis :
– 18 or 21 slots
– PXI Express system slot routing via dual x8 and x16 configuration
– Up to 102 W power and cooling capacity per slot
– System bandwidth up to 24 GB/s
– Slot bandwidth up to 8 GB/s
– 10 MHz internal reference clock
– 100 MHz internal reference clock
– Operating temperature 0 to 55°C (50°C for HP versions)
– Fan controller for optimized cooling and noise reduction
– Removable power supply 2400 W or 1300 W depending on version
# The PXES-2788 range comprises three chassis models:
– PXES-2788/HP: PXI Express chassis, 18 Gen3 slots, removable 2400W power supply unit
– PXES-2788E/HP: PXI Express chassis, 21 Gen3 slots, 2400 W removable power supply unit
– PXES-2788E: PXI Express chassis, 21 Gen3 slots, 1,300 W removable power supply.
